PRODUCT INDEX:

VARIABLE RF SAMPLERS:
RF Sampler 2kw
RF Sampler 2kw
(Variable RF Sampler / RF Demodulator with Headphone and External Trigger Out for Station Monitoring (200 watts)

RF DEMODULATORS:
RF Demodulator 200w

SPLATTER VIEW COMBOS (Model RF-D + Series RF-S Variable RF Sampler) - Two Box Package:
Splatter View 2kw
RF Sampler 2kw

AM MODULATION MONITOR / VARIABLE RF SAMPLER - One Box Package:
AM Mod Monitor / RF Sampler 200w
AM Mod Monitor / RF Sampler 1kw
AM Mod Monitor / RF Sampler 2kw
AM Mod Monitor / RF Sampler 5kw

RF-S2K RF Sampler (2,000w)
RF Sampler - The model RF-S2K (Variable RF Sampler) is designed as a convenient, proven plug-and-play solution to directly sample and convert the RF envelope output from your high power amplifier into a usable signal suitable for feeding the Vertical "Y" input of your oscilloscope or establish a pre-distortion feedback signal for use with SDR based systems! This may also be used to establish a post-amplifier reference signal when used with our model RF-D for Splatter View operation!

Additionally, the RF-S2K may be used as an RF coupling probe for spectrum analysis, RF envelope observation for SSB, AM and CW modes or frequency counting and control. It features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-S2K produces an un-rectified, variable and adjustable non-directional sample at the BNC jack, making the RF-S2K an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$89.95 usd
6 Ft. cable and adapter included!

VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-S2K:
Frequency Response
Frequency
Response:
RF: 3 ~ 30 MHz
Rated Input
Rated Input:
0w ~ 2,000w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
BNC
Controls
Controls:
Variable RF Output 6dB
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cable & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
Oscilloscope Vertical "Y" In
(Post-Amplifier Reference Signal)

Pre-Distortion Sampling for use with Anan Pure Signal®

RF Modulation Envelope Monitor

Peak Envelope Power Monitor
Dimentions
Dimensions:
W 2 1/8" x L 3 1/4" x H 1 5/8"


RF-S5K RF Sampler (5,000w)
RF Sampler - The model RF-S5K (Variable RF Sampler) is designed as a convenient, proven plug-and-play solution to directly sample and convert the RF envelope output from your high power amplifier into a usable signal suitable for feeding the Vertical "Y" input of your oscilloscope or establish a pre-distortion feedback signal for use with SDR based systems! This may also be used to establish a post-amplifier reference signal when used with our model RF-D for Splatter View operation!

Additionally, the RF-S5K may be used as an RF coupling probe for spectrum analysis, RF envelope observation for SSB, AM and CW modes or frequency counting and control. It features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-S5K produces an un-rectified, variable and adjustable non-directional sample at the BNC jack, making the RF-S5K an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$104.95 usd
6 Ft. cable and adapter included!

VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-S5K:
Frequency Response
Frequency
Response:
RF: 3 ~ 30 MHz
Rated Input
Rated Input:
0w ~ 4,000w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
BNC
Controls
Controls:
Variable RF Output 6dB
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cable & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
Oscilloscope Vertical "Y" In
(Post-Amplifier Reference Signal)

Pre-Distortion Sampling for use with Anan Pure Signal®

RF Modulation Envelope Monitor

Peak Envelope Power Monitor
Dimentions
Dimensions:
W 2 1/8" x L 3 1/4" x H 1 5/8"



RF-SM - Station Monitor (200 Watts)
Station Monitor - The model RF-SM (Variable RF Sampler / RF Demodulator with Headphone and External Trigger Out for Station Monitoring) is designed specifically for those who do not use linear amplification but want the best RF station monitoring capabilities available.

The Variable RF Sampler of the model RF-SM is designed to specifically sample and convert very low RF power envelopes directly to a usable signal suitable for feeding the vertical "Y" input of your oscilloscope or establish a pre-distortion feedback signal for use with SDR based systems!

The isolated External Trigger output of the model RF-SM provides a unique signal suitable for feeding the "External Trigger" input of your oscilloscope. This signal has an ability to synchronize your horizontal modulation envelope sweep, regardless of changing voice or data modulated frequencies, in either SSB or AM envelope monitoring making your envelope lock-in-place when you speak! No more difficult-to-view envelope patterns!

A base-band AM Audio Demodulator is also provided, designed to directly demodulate the RF envelope from your transmitter to a usable signal yielding and boasting a flat audio frequency response ranging from 10 Hz to 16 kHz! This signal is suitable for feeding stereo headphones, line level amplifiers or audio mixers with the final audio level adjustable via the AF output level pot to the 1/4" TRS output Jack, remember this does not adjust the fixed trigger output.

Additionally, the model RF-SM features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-SM produces both an un-rectified, variable and adjustable non-directional sample at the BNC; a rectified, continuously variable, non-directional demodulated source at the 1/4" TRS jack and a rectified, non-variable, non-directional demodulated source at the eternal triggers BNC jack making the RF-SM an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$159.95 usd
Two 6 Ft. cables and adapter included!

VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-SM:
Frequency Response
Frequency
Response:
RF: 3 ~ 30 MHz
Audio: 10 Hz ~ 16 kHz
(See "Demodulator Curves" PDF file)
Rated Input
Rated Input:
Sampler: 0w ~ 200w PEP
Trigger: 1.5w ~ 200w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
AM Dynamic Range
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
BNC
BNC
1/4" TRS Audio
Controls
Controls:
Variable RF Output 6dB
Variable AF Output
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cables & Adapter
Two 6 Ft. BNC Male-to-BNC Male Cables
UHF Male-to-Male Adapter
Applications
RF Modulation Envelope Monitor

External Trigger Synchronization

Pre-Distortion Sampling for use with Anan Pure Signal®

Peak Envelope Power Monitor

AM Audio Modulation Monitor
Dimentions
Dimensions:
W 2 1/8" x L 4" x H 1 5/8"



RF-D RF Demodulator (200w)
RF Demodulator - The model RF-D (RF Base-Band Demodulator) designed to directly demodulate the RF envelope from your transmitter to a usable signal suitable for feeding the Horizontal "X" input of your oscilloscope. This establishes a pre-amplifier reference signal when used with any of the series RF-S Variable RF Samplers for Splatter View operation!

The base-band AM Audio Demodulator provides a signal boasting a flat audio frequency response ranging from 10 Hz to 16 kHz! This signal is suitable for feeding stereo headphones, line level amplifiers or audio mixers with the final audio level adjustable via the AF output level pot to the 1/4" TRS output Jack.

Additionally, the RF-D also provides RF envelope source trigger synchronization. This unique signal is fit for supplying the "Internal Source CH 1 (X) Trigger" selection of your oscilloscope. This option has the ability to synchronize your horizontal modulation envelope sweep, regardless of changing voice or data modulated frequencies in either SSB or AM envelope monitoring making your envelope lock-in-place when you speak! No more difficult-to-view envelope patterns!

The RF-D features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB and produces a rectified, non-directional, demodulated source at the BNC and a continuously adjustable AF output to the 1/4” TRS jack.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$139.95 usd
6 Ft. cable and adapter included!

VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-D:
Frequency Response
Frequency
Response:
RF: 500 kHz ~ 60 MHz
Audio: 10 Hz ~ 16 kHz
(See "Demodulator Curves" PDF file)
Rated Input
Rated Input:
1.5w ~ 200w PEP
AM Dynamic Range
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
BNC
1/4" TRS Audio
Controls
Controls:
Variable AF Output
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cable & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
Oscilloscope Horizontal "X" In
(Pre-Amplifier Reference Signal)

AM Audio Modulation Monitor

RF Envelope Source Trigger Synchronization
Dimentions
Dimensions:
W 2 1/8" x L 3 1/4" x H 1 5/8"



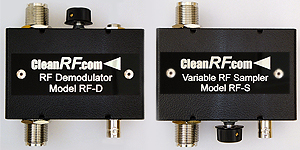

Splatter View 2K Combo (2,000w)
The "Splatter View" 2,000 Watt


The Splatter View 2K (model RF-D/RF-S2K) is made up of two independent plug-and-play passive solutions for exact monitoring of your stations RF performance, ensuring a low IMD splatter-free signal with maximum in-band talk-power. Achieving a true pre/post RF comparison has never been easier than plugging in the two BNC cables provided to your existing oscilloscope!

The idea behind the Splatter View series is simple. What goes into your amplifier, must be the same coming out -with the only added benefit of gain -period. Nothing else added to or taken away from your signal.

When you are truly linear, you will see crisp lines making up the sides of the trapezoid with no curves as shown in the images provided on our Applications page and movie demo near the bottom of our Applications page, showing a true trapezoidal pattern and those that are non-linear.

Our Product Info Sheet PDF below is a great reference for understanding the trapezoidal pattern as well. In addition, the system may be used in RF envelope monitoring mode with the benefit of the internal trigger. The trigger, is a wonderful signal that will lock the waveform as your speak.

Now monitoring in envelope mode is made much easier thanks to the filtered signal provided by our system into your oscilloscope. Independent product descriptions making up the Splatter View combo’s may be read above.

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$195.00 usd
Two 6 Ft. cables and adapters included!


VisaMaster CardAmerican ExpressVisaeCheckPayPal
All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Applications
Oscilloscope Horizontal "X" In  Pre-Amplifier Reference Signal
(RF-D)
Applications
AM Audio Modulation via 1/4” TRS jack with volume control
(RF-D)
Applications
RF Envelope with Source Trigger Synchronization
(RF-D)
Applications
Oscilloscope Vertical "Y" In Post-Amplifier Reference Signal
(RF-S2K)
Applications
RF Modulation Envelope
(RF-S2K)
Applications
Peak Envelope Power
(RF-S2K)
Applications
Pre-Distortion Sampling for use with Anan Pure Signal®
(RF-S2K)
Applications
Trapezoidal X/Y pre/post Amplifier Signal Linearity
(RF-D, RF-S2K)

Please see specifications for each above


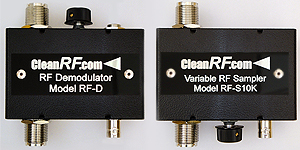

Splatter View 5K Combo (5,000w)
The "Splatter View" 4,000 Watt


The Splatter View 5K (model RF-D/RF-S5K) is made up of two independent plug-and-play passive solutions for exact monitoring of your stations RF performance, ensuring a low IMD splatter-free signal with maximum in-band talk-power. Achieving a true pre/post RF comparison has never been easier than plugging in the two BNC cables provided to your existing oscilloscope!

The idea behind the Splatter View series is simple. What goes into your amplifier, must be the same coming out -with the only added benefit of gain -period. Nothing else added to or taken away from your signal.

When you are truly linear, you will see crisp lines making up the sides of the trapezoid with no curves as shown in the images provided on our Applications page and movie demo near the bottom of our Applications page, showing a true trapezoidal pattern and those that are non-linear.

Our Product Info Sheet PDF below is a great reference for understanding the trapezoidal pattern as well. In addition, the system may be used in RF envelope monitoring mode with the benefit of the internal trigger. The trigger, is a wonderful signal that will lock the waveform as your speak.

Now monitoring in envelope mode is made much easier thanks to the filtered signal provided by our system into your oscilloscope. Independent product descriptions making up the Splatter View combo’s may be read above.

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$215.00 usd
Two 6 Ft. cables and adapters included!

VisaMaster CardAmerican ExpressVisaeCheckPayPal
All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Applications
Oscilloscope Horizontal "X" In  Pre-Amplifier Reference Signal
(RF-D)
Applications
AM Audio Modulation via 1/4” TRS jack with volume control
(RF-D)
Applications
RF Envelope with Source Trigger Synchronization
(RF-D)
Applications
Oscilloscope Vertical "Y" In Post-Amplifier Reference Signal
(RF-S5K)
Applications
RF Modulation Envelope
(RF-S5K)
Applications
Peak Envelope Power
(RF-S5K)
Applications
Pre-Distortion Sampling for use with Anan Pure Signal®
(RF-S2K)
Applications
Trapezoidal X/Y pre/post Amplifier Signal Linearity
(RF-D, RF-S5K)

Please see specifications for each above



RF-AM AM Modulation Monitor / RF Sampler (200w)
AM Modulation Monitor - The model RF-AM (AM Modulation Monitor) is designed as both an AM Audio Demodulator, External Trigger source and Variable RF Sampler.

The base band AM Audio Demodulator is designed to directly demodulate the RF envelope from your transmitter to a usable signal, yielding a flat audio frequency response ranging from 10 Hz to 16 kHz.

This signal is suitable for feeding stereo headphones, line level amplifiers or audio mixers with the final audio level adjustable to the 1/4" TRS output Jack.

The External Trigger output of the model RF-AM provides a unique signal suitable for feeding the "External Trigger" input of your oscilloscope. This signal has an ability to synchronize your horizontal modulation envelope sweep, regardless of changing voice or data modulated frequencies, in either SSB or AM envelope monitoring.

An RF envelope may be monitored simultaneously from the Variable RF Sampler in conjunction with an oscilloscope.

The power rating is from 1.5w ~ 200w PEP, typical 40w carrier. The model RF-AM is an ideal solution for LPAM (Low Power Amplitude Modulation) or low powered medium wave, short wave or amateur broadcast transmitters.

Note: It is recommended to stay as near to your transmitter’s max PEP power rating when choosing any of the RF-AM series, as this will yield the best signal output to the end user.

Additionally, the model RF-AM features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-AM produces both an un-rectified, variable and continuously adjustable non-directional sample at the BNC; a rectified, continuously variable, non-directional demodulated source at the 1/4" TRS jack and a rectified, non-variable, non-directional demodulated source at the eternal triggers BNC jack making the RF-AM an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$159.95 usd
Two 6 Ft. cables and adapter included!


VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-AM:
Frequency Response
Frequency
Response:
RF: 2 ~ 30 MHz
Audio: 10 Hz ~ 16 kHz
(See "Demodulator Curves" PDF file)
Rated Input
Rated Input:
1.5w ~ 200w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
AM Dynamic Range
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
1/4" TRS Audio
2 BNC's
Controls
Controls:
Variable RF Output 6dB
Variable AF Output
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cables & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
RF Modulation Envelope Monitor

AM Audio Modulation Monitor

Peak Envelope Power Monitor

RF Envelope Source Trigger Synchronization
Dimentions
Dimensions:
W 2 1/8" x L 4" x H 1 5/8"


RF-AM1K AM Modulation Monitor / RF Sampler (1,000w)
AM Modulation Monitor - The model RF-AM1K (AM Modulation Monitor) is designed as both an AM Audio Demodulator, External Trigger source and Variable RF Sampler.

The base band AM Audio Demodulator is designed to directly demodulate the RF envelope from your transmitter to a usable signal, yielding a flat audio frequency response ranging from 10 Hz to 16 kHz.

This signal is suitable for feeding stereo headphones, line level amplifiers or audio mixers with the final audio level adjustable to the 1/4" TRS output Jack.

The External Trigger output of the model RF-AM1K provides a unique signal suitable for feeding the "External Trigger" input of your oscilloscope. This signal has an ability to synchronize your horizontal modulation envelope sweep, regardless of changing voice or data modulated frequencies, in either SSB or AM envelope monitoring.
An RF envelope may be monitored simultaneously from the Variable RF Sampler in conjunction with an oscilloscope.

The power rating is from 10w ~ 1000w PEP, typical 250w carrier. The model RF-AM1K is an ideal solution for moderate powered medium wave, short wave or amateur broadcast transmitters.

Note: It is recommended to stay as near to your transmitter’s max PEP power rating when choosing any of the RF-AM series, as this will yield the best signal output to the end user.

Additionally, the model RF-AM1K features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-AM1K produces both an un-rectified, variable and continuously adjustable non-directional sample at the BNC; a rectified, continuously variable, non-directional demodulated source at the 1/4" TRS jack and a rectified, non-variable, non-directional demodulated source at the eternal triggers BNC jack making the RF-AM1K an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$169.95 usd
Two 6 Ft. cables and adapter included!


VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-AM1K:
Frequency Response
Frequency
Response:
RF: 2 ~ 30 MHz
Audio: 10 Hz ~ 16 kHz
(See "Demodulator Curves" PDF file)
Rated Input
Rated Input:
10w ~ 1,000w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
AM Dynamic Range
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
1/4" TRS Audio
2 BNC's
Controls
Controls:
Variable RF Output 6dB
Variable AF Output
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cables & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
RF Modulation Envelope Monitor

AM Audio Modulation Monitor

Peak Envelope Power Monitor

RF Envelope Source Trigger Synchronization
Dimentions
Dimensions:
W 2 1/8" x L 4" x H 1 5/8"


RF-AM2K AM Modulation Monitor / RF Sampler (2,000w)
AM Modulation Monitor - The model RF-AM2K (AM Modulation Monitor) is designed both as an AM Audio Demodulator, External Trigger source and Variable RF Sampler.

The base band AM Audio Demodulator is designed to directly demodulate the RF envelope from your transmitter to a usable signal, yielding a flat audio frequency response ranging from 10 Hz to 16 kHz.

This signal is suitable for feeding stereo headphones, line level amplifiers or audio mixers with the final audio level adjustable to the 1/4" TRS output Jack.

The External Trigger output of the model RF-AM2K provides a unique signal suitable for feeding the "External Trigger" input of your oscilloscope. This signal has an ability to synchronize your horizontal modulation envelope sweep, regardless of changing voice or data modulated frequencies, in either SSB or AM envelope monitoring.
An RF envelope may be monitored simultaneously from the Variable RF Sampler in conjunction with an oscilloscope.

The power rating is from 20w ~ 2000w PEP, typical 400w carrier. The model RF-AM2K is an ideal solution for high powered medium wave, short wave or amateur broadcast transmitters.

Note: It is recommended to stay as near to your transmitter’s max PEP power rating when choosing any of the RF-AM series, as this will yield the best signal output to the end user.

Additionally, the model RF-AM2K features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-AM2K produces both an un-rectified, variable and continuously adjustable non-directional sample at the BNC; a rectified, continuously variable, non-directional demodulated source at the 1/4" TRS jack and a rectified, non-variable, non-directional demodulated source at the eternal triggers BNC jack making the RF-AM2K an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$179.95 usd
Two 6 Ft. cables and adapter included!


VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-AM2K:
Frequency Response
Frequency
Response:
RF: 2 ~ 30 MHz
Audio: 10 Hz ~ 16 kHz
(See "Demodulator Curves" PDF file)
Rated Input
Rated Input:
20w ~ 2,000w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
AM Dynamic Range
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
1/4" TRS Audio
2 BNC's
Controls
Controls:
Variable RF Output 6dB
Variable AF Output
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cables & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
RF Modulation Envelope Monitor

AM Audio Modulation Monitor

Peak Envelope Power Monitor

RF Envelope Source Trigger Synchronization
Dimentions
Dimensions:
W 2 1/8" x L 4" x H 1 5/8"


RF-AM5K AM Modulation Monitor / RF Sampler (5,000w)
AM Modulation Monitor - The model RF-AM5K (AM Modulation Monitor) is designed both as an AM Audio Demodulator, External Trigger source and Variable RF Sampler.

The base band AM Audio Demodulator is designed to directly demodulate the RF envelope from your transmitter to a usable signal, yielding a flat audio frequency response ranging from 10 Hz to 16 kHz.

This signal is suitable for feeding stereo headphones, line level amplifiers or audio mixers with the final audio level adjustable to the 1/4" TRS output Jack.

The External Trigger output of the model RF-AM5K provides a unique signal suitable for feeding the "External Trigger" input of your oscilloscope. This signal has an ability to synchronize your horizontal modulation envelope sweep, regardless of changing voice or data modulated frequencies, in either SSB or AM envelope monitoring.

An RF envelope may be monitored simultaneously from the Variable RF Sampler in conjunction with an oscilloscope.

The power rating is from 120w ~ 4000w PEP, typical 1000w carrier. The model RF-AM5K is an ideal solution for high powered medium wave, short wave or amateur broadcast transmitters.

Note: It is recommended to stay as near to your transmitter’s max PEP power rating when choosing any of the RF-AM series, as this will yield the best signal output to the end user.

Additionally, the model RF-AM5K features a passive-flat operational VSWR over a broad frequency range and insertion loss is a negligible 0.1 dB. The RF-AM5K produces both an un-rectified, variable and continuously adjustable non-directional sample at the BNC; a rectified, continuously variable, non-directional demodulated source at the 1/4" TRS jack and a rectified, non-variable, non-directional demodulated source at the eternal triggers BNC jack making the RF-AM5K an ideal choice for a variety of applications.

All CleanRF Systems chassis are built, assembled and tested here in the USA headquartered near the grounds of WWV and are finished over by a baked-on black textured outer-coating finish for decades of continual service and performance. Connectors are custom long barrel SO239’s for easy installation. Products are fully warrantied against any defects both electrically or mechanically and include BNC cables and adapters for plug and play operation!

By clicking the "Buy It Now!" button, you agree to the
Warranty Information and Terms of this transaction.
$199.95 usd
Two 6 Ft. cables and adapter included!


VisaMaster CardAmerican ExpressVisaeCheckPayPal

All Transactions are Secure 128 bit encyption

Detailed ViewDetailed View
Adobe Document Product Information Sheet
Adobe Document Product Connections and Applications
Specifications:
RF-AM5K:
Frequency Response
Frequency
Response:
RF: 2 ~ 30 MHz
Audio: 10 Hz ~ 16 kHz
(See "Demodulator Curves" PDF file)
Rated Input
Rated Input:
120w ~ 4,000w PEP
Sampler Output
Sampler Output:
-60dBm @ 15MHz
AM Dynamic Range
Input Connectors
Connectors
In:
SO-239
Output Connectors
Connectors
Out:
SO-239
1/4" TRS Audio
2 BNC's
Controls
Controls:
Variable RF Output 6dB
Variable AF Output
VSWR
VSWR:
< 1:1.1
Insertion Loss
Insertion Loss:
< 0.1 dB
Cable
Cables & Adapter
6 Ft. BNC Male-to-BNC Male Cable
UHF Male-to-Male Adapter
Applications
RF Modulation Envelope Monitor

AM Audio Modulation Monitor

Peak Envelope Power Monitor

RF Envelope Source Trigger Synchronization
Dimentions
Dimensions:
W 2 1/8" x L 4" x H 1 5/8"

Order Using "Buy Now" Buttons - All payments are secure 128 bit encyption via PayPal processing.
(Note: You do NOT need a PayPal Account to Order)
Or Call 970-412-3456

All products are shipped via the United States Postal Service (USPS) Priority / International Priority mail.

Questions, Comments or Suggestions? - please contact Me


Home | Application | Products | About | Contact | Links
